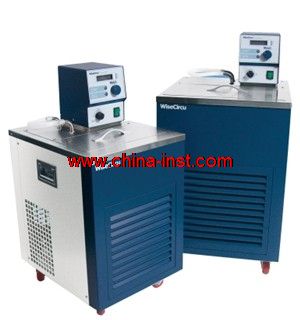

wisecircu -冷凍循環浴槽
•Ideal for Direct Immersion of Samples or External Circulating System in the field of Biotechnology and Laboratories.
•理想的在生物實驗室的樣品或外循環系統直接浸入。
•Innovative Easy-to-Use Digital Fuzzy Controller.
•創新的易于使用的數字模糊控制器。
•Simplest Control by Jog-Shuttle Switch (Patent pending) and Digital LCD display.
•簡單的飛梭控制開關(專利申請中)和數字液晶顯示屏。
•RS232C Interface for Remote Monitoring and Controlling with PC.
遠程監測和控制•RS232C接口與PC。
•Digital Timer Function :‘ Delay Time’and‘Operation Time’can be controlled.
•數字定時器功能:“延遲time'and'operation time'can控制。
•Stainless Steel Bath(#304) for Superior Durability & High Thermal Efficiency.
•不銹鋼浴(# 304)優越的耐久性和高的熱效率。
•Stainless Steel Lid prevents Evaporation and keeps Constant Temperature.
•不銹鋼蓋子防止蒸發、保持恒定溫度。
•Powerful Circulation Pump assures Temp. Uniformity.
•有力保證溫度循環泵。均勻性。
•Internal and External Circulation
•內外循環
•Possible Connection with Evaporator or Viscometer.
•可能與蒸發器或粘度計。
•User’s Self-compensation function to control Difference between Real Temperature and Indicated Temperature (±10.0?).
•用戶自補償功能的控制之間的真實溫度差和表明溫度(±10?)。
•Warning and Auto-Stop function for Shortage of Liquid.
•報警和自動停止功能液短缺。
•Auto-controlled Refrigerating System with Protection of Compressor and Power Saving.
•自動控制制冷系統的壓縮機保護和節能。
•Digital LCD with Back-Light Function.
•數字液晶背光功能。
•Over Temperature & Over Current Protection, Sensor Error & Low Level Detection, Leakage Breaking.
•過電流保護下,傳感器的誤差和低水平的檢測,漏斷。
•CFC-free (404A) Refrigeration System.
•無氟制冷系統(404A)。
•CE Certified
•CE認證
•PL(Product Liability) Insurance
•PL(產品責任)保險
•storage function for repeated applications in the laboratory under identical conditions
重復應用在實驗室中相同的條件下,•功能的存儲
model型號 |
Wisd WiseCircu WCR-P8 |
Wisd WiseCircu WCR-P12 |
Wisd WiseCircu WCR-P22 |
Wisd WiseCircu WCR-P30 |
dimension (LxBxH)尺寸 |
effective space (mm)有效空間 |
180 x 143 x 150 |
250 x 150 x 150 |
350 x 250 x 150 |
350 x 250 x 205 |
internal (mm) 內尺寸 |
180 x 310 x 150 |
250 x 320 x 150 |
350 x 420 x 150 |
350 x 420 x 205 |
external (mm)外尺寸 |
262 x 468 x 630 |
372 x 460 x 750 |
455 x 545 x 770 |
455 x 545 x 845 |
bath capacity 容積 |
8 Liter |
12 Liter |
22 Liter |
30 Liter |
heating power 功率 |
1000W |
1500W |
2000W |
2200W |
refrigerator |
1/3HP |
1/3HP |
3/4HP |
7/8HP |
temperature溫度 |
range °C范圍 |
- 20°C ~ 100°C |
accuracy精度 |
±0,1°C |
uniformity |
±0,2°C bei -10°C |
sensor傳感器 |
PT100 |
material材料 |
internal內 |
stainless steel (#304) |
external外 |
powder coated steel |
insulation保溫材料 |
polysytrene 20mm |
pump泵流速 |
15 l/min |
compressor control壓縮機控制器 |
Intelligent Control of Refrigerator for preventing Overload of Compressor智能控制的防止過載的制冷壓縮機 |
refrigerant制冷劑 |
CFC-free (404A) refrigeration system 無氟制冷系統(404A) |
controller控制器 |
Programmable Digital Feedback controller with Jog-Shuttle Switch (Turn + Push) |
display顯示 |
digital LCD with backlight function具有背光功能的液晶數字顯示 |
timer時間 |
99 h 59 min (delay & continuous function included)99小時59分鐘(延遲和連續) |
safety device安全裝置 |
over temperature and over current protected, sensor error and low level detector, leakage breaker過溫過流保護,傳感器的誤差和低水位探測器,漏電斷路器 |
others其他 |
user self-compensation function ±10°C 用戶自補償功能±10°C |
storage function (temperature, timer)存儲功能(溫度,定時器) |
locking mode (Jog-Shuttle disabled)鎖定模式 |
alarm signal (error status and timer-end)報警信號(錯誤狀態和定時器結束) |
power supply*電源 |
AC 230 V, 1N~, 50 Hz / 60 Hz |
AC 400 V, 3N~, 60/60 Hz (bei WCR-P30) | |
