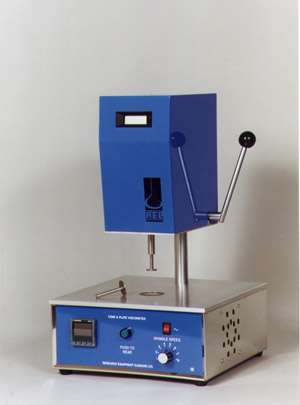

Digital Viscometer
Specifications技術參數:
Viscosity & Shear rate Standard range |
Cone轉子 |
Type |
RPM轉速 |
Viscosity range粘度范圍 |
Shear Rate剪切率 |
2P |
A |
6-750 |
0-2 to 0-256 poises |
80-10,000 sec-1 |
5P |
B |
6-750 |
0-5 to 0-640 poises |
80-10,000 sec-1 |
10P |
C |
6-750 |
0-10 to 0-1280 poises |
80-10,000 sec-1 |
20P |
D1 |
6-750 |
0-20 to 0-2560 poises |
20-2500 sec-1 |
40P |
D |
6-750 |
0-40 to 0-5120 poises |
20-2500 sec-1 |
100P |
E |
6-750 |
0-100 to 0-12800 poises |
20-2,500 sec-1 |
Temperature Ranges 溫度范圍 |
10 degrees C - 75 degrees C with three selected temperatures, 25 degrees C - 230 degrees C with selected temperatures. Both ranges with variable temperature having a resolution of 0.1 degrees C |
Features 特點 |
Latched Button Auto - Zero Recalibration by a simple lever adjustment |
Optional Ranges 可選范圍 |
Low range 6 sec-1 to 3,000 sec-1 High range 40 sec-1 to 18,000 sec -1. Low Speed 60rpm ranges from 125, 250 and 500 poises. Configured to customers requirements |
Digital Display 數字顯示 |
Temperature, Operating range, Reading poise (P) |
PC Interface 計算機接口 |
RS 232 - Instrument range Setting, Reading Display Temperature Display, Graphics, Save & Print. |
Power 電源 |
220V/110V: 50Hz/60Hz: 125 Watts |
Overall Accuracy 測量精度 |
Poise Reading: +/- 2% of full scale confirmed by using PRA Olis traceable to National Standards. Calibrated point accuracy +/- 0.5% of full scale |
主要特點:
容易清潔,樣品量少,測試精度高,
應用:覆銅板用溴化樹脂,熱溶膠,石蠟,高聚物,瀝青,油漆,油墨,涂料,樹脂等 |
